Via-in-Pad Board

Via-in-Pad Board

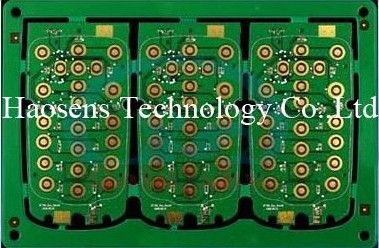

Name: Via-in-Pad Board

Material: FR-4 0.6MM

Surface Plating: ENIG

Min hole size 0.1MM

Min.trace line/space 0.075MM

half-PTH hole

blind vias (L1-L2)

vias-in-pad
