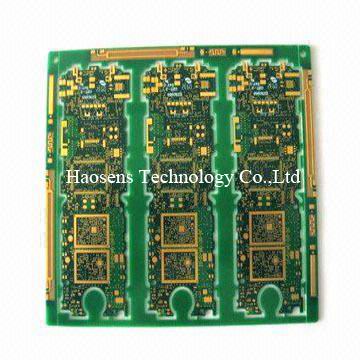

4-layer PCB with Immersion Gold

4-layer PCB with Immersion Gold





Layer count: 4 layers

Board thickness: 1.60±0.16mm

Minimum drill diameter: 0.1mm with laser drilling

Aspect ratio: 8.0: 1

Line/space: 3mil/3mil

Solder mask: light green with Taiyo PSR4000

Surface finish:

Immersion gold: 2u

Material: Shengyi S1140

Material Tg: 140
